Впускной Шланг Из Нерж.стали 3/8 f-1/2 f 685 Мм
tubo DN 10 ( 10x14 mm ) stainless steel
max temperature 90°C
max pressure 20 bar

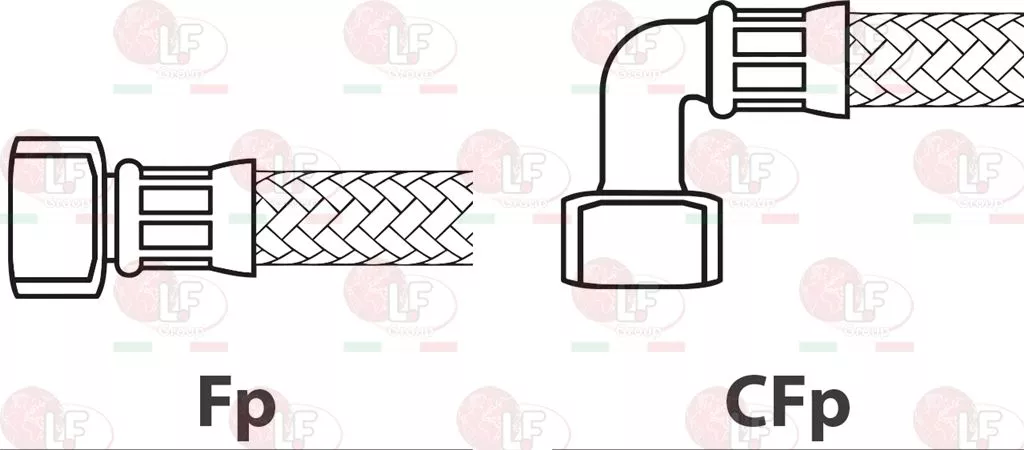

STAINLESS STEEL INLET PIPES WITH FLAT FITTINGS
| LF Code | Connections | Length (mm) | internal (mm) | Max temperature (°C) | Max pressure (bar) | |
|---|---|---|---|---|---|---|
| 1449708 |  |
1/8"F - 1/8"F | 300 | 6 | 90 | 10 |
| 1449267 |  |
1/8"F - 1/8"F (NSF) | 370 | 6 | 90 | 10 |
| 1449709 |  |
1/8"F - 1/8"F | 600 | 6 | 90 | 10 |
| 5054951 |  |
1/8"F - 1/8"F | 1000 | 6 | 90 | 10 |
| 1449268 |  |
1/8"F - 1/8"F (NSF) | 1000 | 6 | 90 | 10 |
| 5501365 |  |
1/8"F - 1/8"M | 170 | 6 | 90 | 10 |
| 1449227 |  |
1/8"F - 1/8"M (FDA) | 205 | 6 | 90 | 10 |
| 1449228 |  |
1/8"F - 1/8"M (FDA) | 490 | 6 | 90 | 10 |
| 1449724 |  |
3/8"F - 3/8"F | 1000 | 8 | 90 | 10 |
| 1449726 |  |
3/8"F - 3/8"F | 1500 | 8 | 90 | 10 |
| 1449257 |  |
3/8"F - 3/8"F (NSF) | 1500 | 8 | 90 | 10 |
| 1449262 |  |
3/8"F - 3/8"F (NSF) | 1500 | 8 | 90 | 10 |
| 1449089 |  |
3/8"F - 3/8"F | 2000 | 8 | 90 | 10 |
| 1449718 |  |
3/8"F - 3/8"F | 370 | 8 | 90 | 10 |
| 1449263 |  |
3/8"F - 3/8"F (NSF) | 1500 | 8 | 90 | 10 |
| 1449703 |  |
3/8"F - 3/8"F | 2000 | 8 | 90 | 10 |
| 3449212 |  |
3/8"F - 1/2"F | 300 | 8 | 90 | 10 |
| 3449213 |  |
3/8"F - 1/2"F | 685 | 10 | 90 | 10 |
| 5033977 |  |
3/8"F - 3/4"F | 2000 | 10 | 90 | 10 |
| 3450163 |  |
3/8"F - 1/2" M | 280 | 8 | 90 | 10 |
| 3449294 |  |
1/2"F - 1/2"F | 2000 | 8 | 90 | 10 |
| 7105430 |  |
1/2"F - 1/2"F | 300 | 8 | 90 | 10 |
| 7105317 |  |
1/2"F - 1/2"F | 500 | 8 | 90 | 10 |
| 3449030 |  |
1/2"F - 1/2"F | 1500 | 12,5 | 90 | 10 |
| 3449337 |  |
1/2"F - 1/2"F | 2000 | 12,5 | 90 | 10 |
| 3449317 |  |
1/2"F - 3/8"F | 685 | 8 | 90 | 10 |
| 3449209 |  |
1/2"F - 1/2"F | 1000 | 8 | 90 | 10 |
| 3449210 |  |
1/2"F - 1/2"F (WRAS) | 1500 | 12,5 | 90 | 10 |
| 3449211 |  |
1/2"F - 1/2"F (WRAS) | 2000 | 12,5 | 90 | 10 |
| 3449031 |  |
3/4"F - 1/2"F (SVGW - VDE) | 1500 | 12,5 | 90 | 10 |
| 3449208 |  |
3/4"F - 3/4"F | 500 | 12,5 | 90 | 10 |
| 3449036 |  |
3/4"F - 3/4"F (WRAS) | 1000 | 12,5 | 90 | 10 |
| 3449032 |  |
3/4"F - 3/4"F (WRAS) | 1500 | 12,5 | 90 | 10 |
| 3449033 |  |
3/4"F - 3/4"F (WRAS) | 2000 | 12,5 | 90 | 10 |
| 3449341 |  |
3/4"F - 3/4"F WRAS) | 2500 | 12 | 90 | 20 |
| 3449324 |  |
3/4"F - 3/4"F | 500 | 12,5 | 90 | 10 |
| 3449037 |  |
3/4"F - 3/4"F (WRAS) | 1000 | 12,5 | 90 | 10 |
| 3449034 |  |
3/4"F - 3/4"F (WRAS) | 1500 | 12,5 | 90 | 10 |
| 1449264 |  |
3/4"F - 3/4"F (NSF) | 1500 | 8 | 90 | 10 |
| 3449035 |  |
3/4"F - 3/4"F (WRAS) | 2000 | 12,5 | 90 | 10 |
| 3449038 |  |
3/4"F - 3/4"F (WRAS) | 2500 | 12,5 | 90 | 10 |
| Код | Производитель |
|---|---|
| 12160007 | ELFRAMO |
| 12160007 | EMMEPI |
| 12160007 | KOMEL |
| Производитель | Тип | Модель |
|---|---|---|
| ELFRAMO | Dishwasher | BE40, BE50, D40 |
| ELFRAMO | Dishwasher hood type | C44, C66 |
| ELFRAMO | Glasswasher/Cupwasher | BD11, D40I |
| EMMEPI | Dishwasher | LBE34, LBE34DG, LS005P, LS055E, LS055EP |
| EMMEPI | Glasswasher/Cupwasher | LS005 |
| KOMEL | Dishwasher | 8044, 8066, 8077, F11, F93, F94 |
| KOMEL | Glasswasher/Cupwasher | BE40 KOMEL, BE50 KOMEL, F88 |
