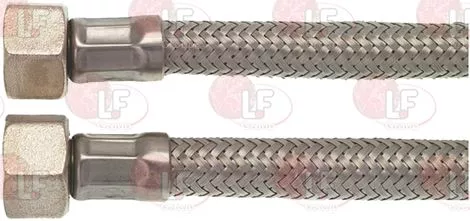

Гибкий Шланг 3/8 Fc X Fc 1500 Мм
EPDM hose covered in stainless steel
hose external 12 mm
max temperature 90°C
max pressure 10 bar
STAINLESS STEEL INLET PIPES WITH CONICAL FITTINGS
| LF Code | Connections | Length (mm) | internal (mm) | Max temperature (°C) | Max pressure (bar) | |
|---|---|---|---|---|---|---|
| 1449706 |  |
1/8"F - 1/8"F | 370 | 6 | 90 | 10 |
| 1449707 |  |
1/8"F - 1/8"F | 1500 | 6 | 90 | 10 |
| 1449249 |  |
1/4"F - 1/4"F (ACS) | 190 | 8 | 90 | 10 |
| 1449269 |  |
1/4"F - 1/4"F (NSF) | 280 | 6 | 90 | 10 |
| 5019507 |  |
1/4"F - 1/4"F | 300 | 8 | 90 | 10 |
| 1449238 |  |
1/4"F - 1/4"F (NSF) | 320 | 6 | 90 | 10 |
| 1449239 |  |
1/4"F - 1/4"F | 325 | 6 | 90 | 10 |
| 5014643 |  |
1/4"F - 1/4"F | 450 | 6 | 90 | 10 |
| 5025958 |  |
1/4"F - 1/4"F | 500 | 6 | 90 | 10 |
| 1449240 |  |
1/4"F - 1/4"F (ACS) | 1600 | 6 | 90 | 10 |
| 5024776 |  |
3/8"F - 1/4"F (NSF) | 250 | 8 | 90 | 10 |
| 1449275 |  |
3/8"F - 3/8"F (NSF) | 330 | 8 | 90 | 10 |
| 1449241 |  |
3/8"F - 3/8"F (ACS) | 450 | 8 | 90 | 10 |
| 1449276 |  |
3/8"F - 3/8"F (NSF) | 450 | 8 | 90 | 10 |
| 1449293 |  |
3/8"F - 3/8"F (NSF) | 450 | 8 | 90 | 10 |
| 1449722 |  |
3/8"F - 3/8"F | 500 | 8 | 90 | 10 |
| 1449277 |  |
3/8"F - 3/8"F (NSF) | 530 | 8 | 90 | 10 |
| 1449278 |  |
3/8"F - 3/8"F (NSF) | 630 | 8 | 90 | 10 |
| 1449242 |  |
3/8"F - 3/8"F (ACS) | 700 | 8 | 90 | 10 |
| 1449237 |  |
3/8"F - 3/8"F (NSF) | 710 | 8 | 90 | 10 |
| 1449705 |  |
3/8"F - 3/8"F | 750 | 8 | 90 | 10 |
| 1449226 |  |
3/8"F - 3/8"F (NSF) | 800 | 8 | 90 | 10 |
| 1449723 |  |
3/8"F - 3/8"F | 1000 | 8 | 90 | 10 |
| 1449229 |  |
3/8"F - 3/8"F (NSF) | 1000 | 8 | 90 | 10 |
| 1449230 |  |
3/8"F - 3/8"F (NSF) | 1200 | 8 | 90 | 10 |
| 1449725 |  |
3/8"F - 3/8"F | 1500 | 8 | 90 | 10 |
| 1449243 |  |
3/8"F - 3/8"F (ACS) | 1500 | 8 | 90 | 10 |
| 1449292 |  |
3/8"F - 3/8"F (NSF) | 1500 | 8 | 90 | 10 |
| 1449218 |  |
3/8"F - 3/8"F | 2000 | 8 | 90 | 10 |
| 1449260 |  |
3/8"F - 3/8"F (NSF) | 2300 | 8 | 90 | 10 |
| 1449261 |  |
3/8"F - 3/8"F (NSF) | 2800 | 8 | 90 | 10 |
| 1449244 |  |
3/8"F - 3/8"F (ACS) | 250 | 8 | 90 | 10 |
| 1449245 |  |
3/8"F - 3/8"F (ACS) | 310 | 8 | 90 | 10 |
| 1449233 |  |
3/8"F - 3/8"F (NSF) | 385 | 8 | 90 | 10 |
| 1449266 |  |
3/8"F - 3/8"F | 385 | 8 | 90 | 10 |
| 1449732 |  |
3/8"F - 3/8"F | 500 | 8 | 90 | 10 |
| 1449234 |  |
3/8"F - 3/8"F (NSF) | 500 | 8 | 90 | 10 |
| 1449235 |  |
3/8"F - 3/8"F (NSF) | 880 | 8 | 90 | 10 |
| 1449734 |  |
3/8"F - 3/8"F | 1000 | 8 | 90 | 10 |
| 1449736 |  |
3/8"F - 3/8"F | 1500 | 8 | 90 | 10 |
| 3449300 |  |
1/2" Fp x CFp | 1500 | 8 | 90 | 10 |
| 1449232 |  |
3/8"F - 3/8"F (NSF) | 1600 | 8 | 90 | 10 |
| 1449246 |  |
3/8"F - 3/8"F (ACS) | 1600 | 8 | 90 | 10 |
| 1449737 |  |
3/8"F - 3/8"F | 2000 | 8 | 90 | 10 |
| 5500682 |  |
3/8"F - 3/8"F | 2200 | 8 | 90 | 10 |
| 1449702 |  |
3/8"M - 3/8"M | 500 | 8 | 90 | 10 |
| 1449258 |  |
3/8"M - 3/8"F (NSF) | 350 | 8 | 90 | 10 |
| 7102087 |  |
3/8"M - 3/8"F | 380 | 8 | 90 | 10 |
| 1449259 |  |
3/8"M - 3/8"F (NSF) | 1200 | 8 | 90 | 10 |
| 1449247 |  |
3/8"F - 3/8"F (ACS) | 250 | 8 | 90 | 10 |
| 1449248 |  |
3/8"F - 3/8"F (ACS) | 480 | 8 | 90 | 10 |
| Код | Производитель |
|---|---|
| 30408 | ASTORIA CMA |
| CARIMALI | |
| COOKMAX | |
| ECM | |
| 520602 | GEV |
| GR812 | GRIMAC |
| GRC614 | GRIMAC |
| 30408 | MCE |
| 01000029 | NUOVA SIMONELLI |
| D30408 | ORCHESTRALE |
| 01000029 | VICTORIA ARDUINO |
| W10630 | WEGA |
| WY30408 | WEGA |
| WY4630408 | WEGA |
| Производитель | Тип | Модель |
|---|---|---|
| ASTORIA CMA | Coffee machine | ADRIA, ARGENTA, BRAVA, CK, CKE, CKX, CKXE, DENISE, DORA, LISA, PRATIC, PRATIC NEW, VANIA |
| BFC | Coffee machine | CLASSICA, DELUX, GALILEO, GRANDOGE, IMOLA, JUNIOR, LA VITTORIA, LIRA, MARANELLO, MONZA, OPERA |
| CIMBALI | Coffee machine | M20, M21, M24, M24SELECT, M27, M30, M31, M32, M39, M39-GT |
| GAGGIA | Coffee machine | E90 |
| GRIMAC | Coffee machine | ECLISSE, G11, TEN, TWENTY, ZOLA-I, ZOLA-II |
| MCE | Coffee machine | FORMA, START, TOUCH |
| ORCHESTRALE | Coffee machine | ETNICA, PHONICA |
| SCALA | Coffee machine | CARMEN, EROICA, IRIS, NORMA, TOSCA |
| VICTORIA ARDUINO | Coffee machine | ADONIS, ATHENA-LEVA, VA388 BLACK EAGLE |
| WEGA | Coffee machine | AIRY, ATLAS, COLOSSEUM, COMBINOVA, ESPRESSA, EURO-2000, FORMULA-MILANO, JUNIOR, MININOVA, NOVA, ORION ECO, POLARIS, SPHERA, START, SYNTESIS, VELA, VENERE, VENUS |
| Производитель | Описание / бренд | Код деталировки |
|---|---|---|
| ORCHESTRALE | MOTORS AND PUMPING SYSTEMS ETNICA-PHONIC | OR50 |
| SCALA | BOILER AND LEVEL | SC1001 |
| GRIMAC | G11 WATER INLET TAP | GR2501 |
| GRIMAC | ZOLAI-ZOLAII BOILER | GR5101 |
| GRIMAC | TEN-TWENTY BOILER | GR5201 |
| GRIMAC | ECLISSE BOILER | GR5301 |
| CIMBALI | INLET TAP M24-M24SELECT | CI3202 |
| CIMBALI | MOTORS AND PUMPS | CI6002 |
| ASTORIA-CMA | MOTORS AND PUMPS | AS6001 |
| WEGA | MOTORS AND PUMPS | WE4001 |
| VICTORIA ARDUINO | ADONIS HIDRAULIC-PUMP GROUP | VA07 |
| VICTORIA ARDUINO | ATHENA LEVER-TYPE HIDRAULIC GROUP | VA11 |
| BFC | HYDRAULIC SYSTEM | BFC4501 |
| GAGGIA | E90-D90 MOTOR AND PUMP | GA6301 |
Отзывы
Характеристики
| Производитель: | ASTORIA CMA, CARIMALI, COOKMAX, ECM, GRIMAC, MCE, NUOVA SIMONELLI, ORCHESTRALE, VICTORIA ARDUINO, WEGA |
